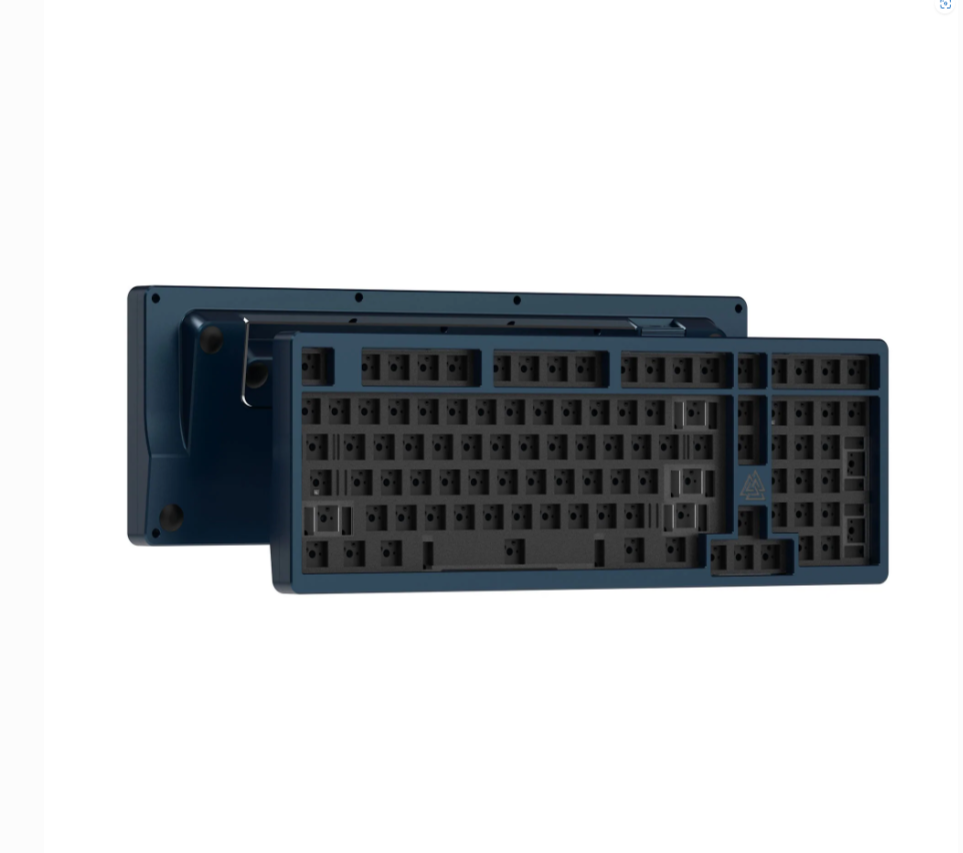

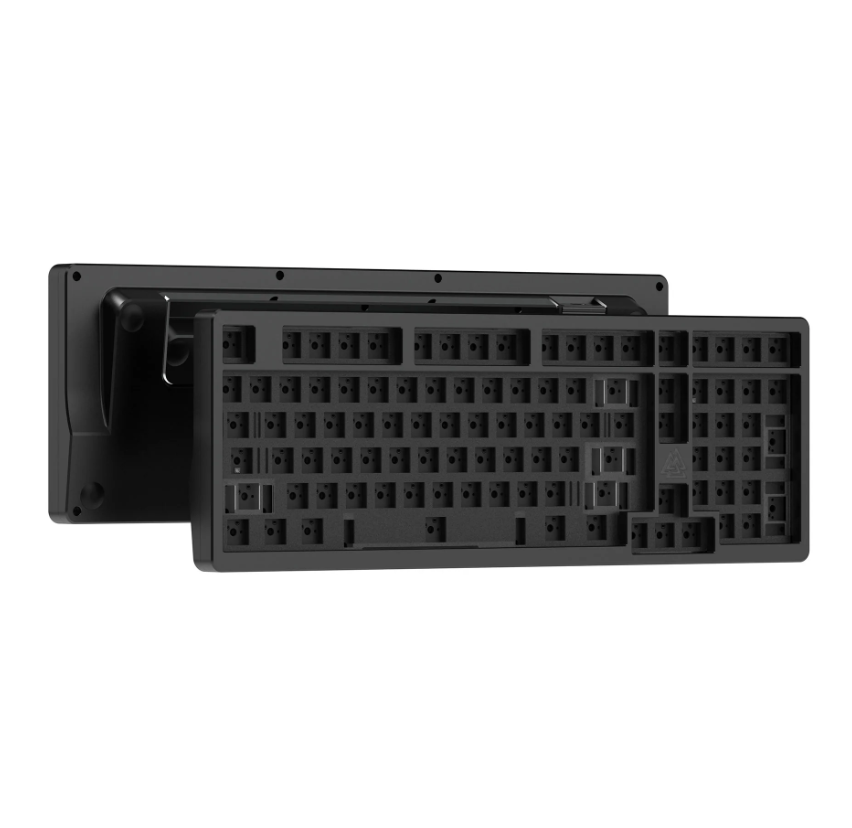

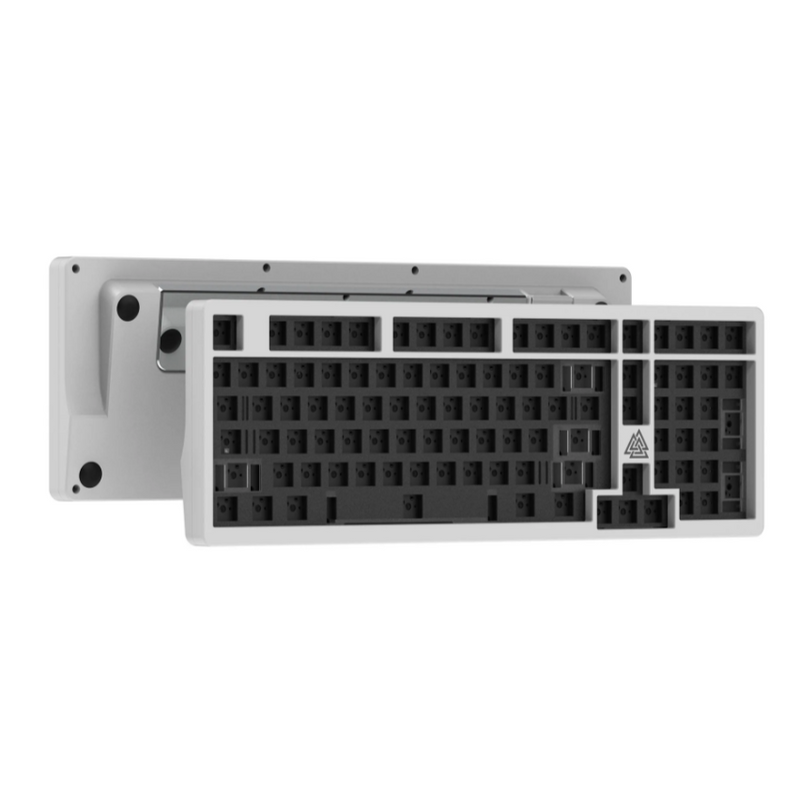

KBDFANS ODIN V2 MECHANICAL KEYBOARD

Specs

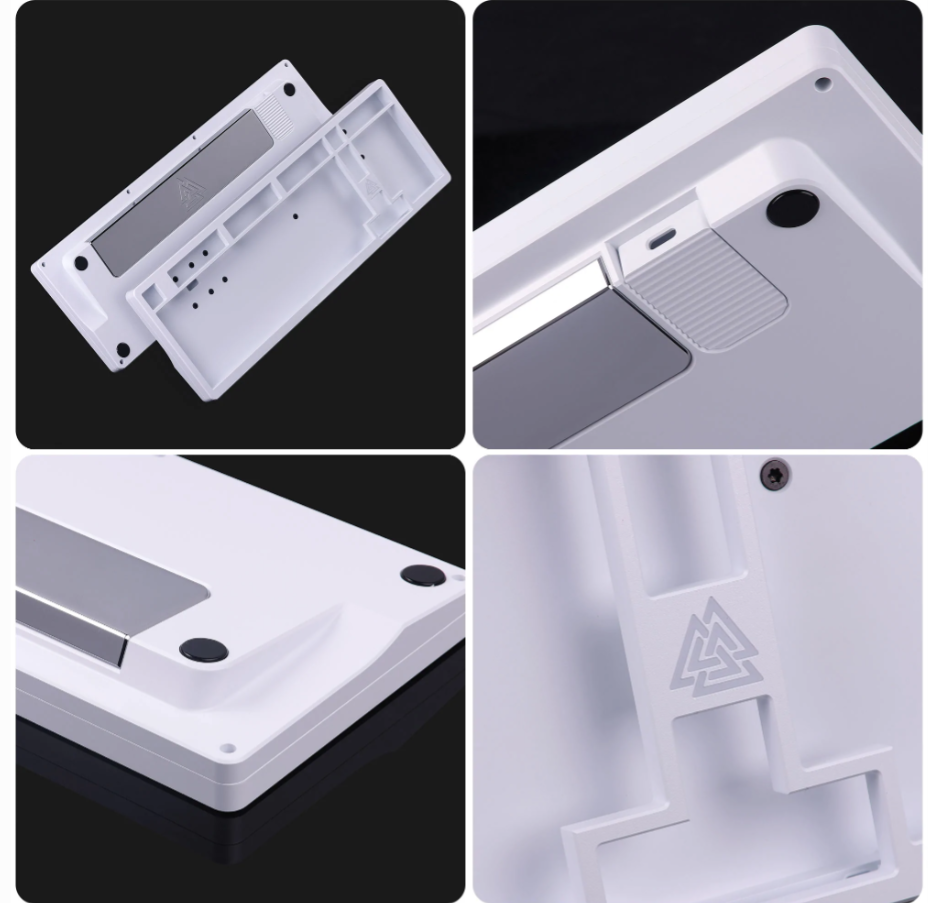

Case: Top aluminum, bottom aluminum

Wired version PCB: Hot-swap version, Flex cut, without RGB effect, only RGB for Badge, 1.2mm thickness

Plate: Polycarbonate (Flex cut)

Stabilizers: 104 kit, and do not support Plate mounted stabilizers

Structure: Leaf spring mount; 100% layout

Interface: USB-C

USB-Port Protector: Aluminum

Translucent badge: Acrylic sandblasting (PVD coating Brass badge optional: PVD Gold, PVD Laser)

Foam: Case foam and PCB foam (PORON material)

Weight Bar: PVD coating silver aluminum (PVD coating Brass weight optional: PVD Gold, PVD Laser)

Rubber feet: Round rubber feet

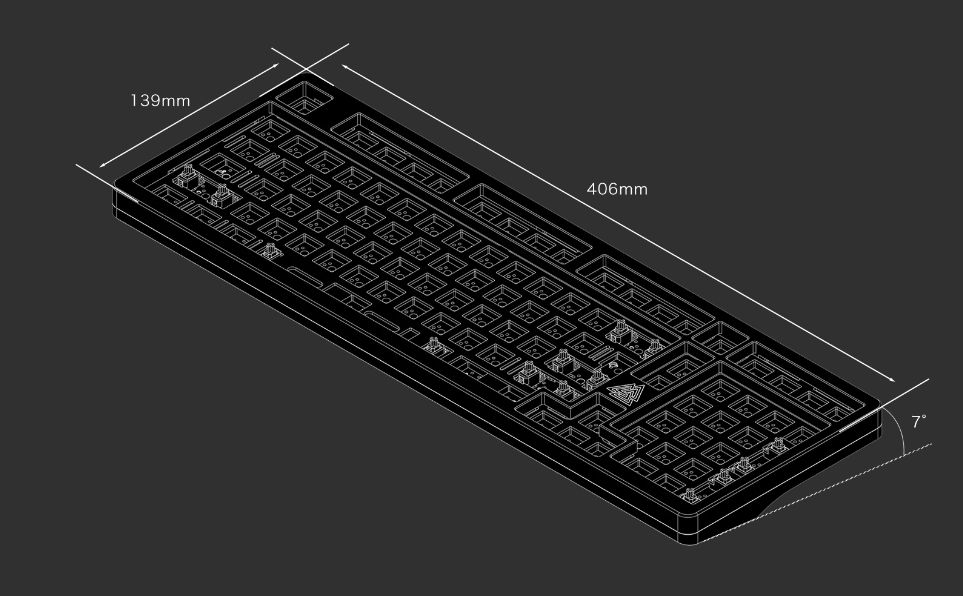

Typing angle: 7°

Weight: Around 1.8kg

Designer: KBDfans Wei
